RV12 Shield

$395.00

Please note this is a made to order piece and usually ships in 48 hours, because of this - if you need to cancel, we must know immediately, or it is non-refundable.

This item cannot be shipped using the flat rate option. If selected, I will calculate the lowest shipping cost and an additional payment will need to be made due to the size of the item.

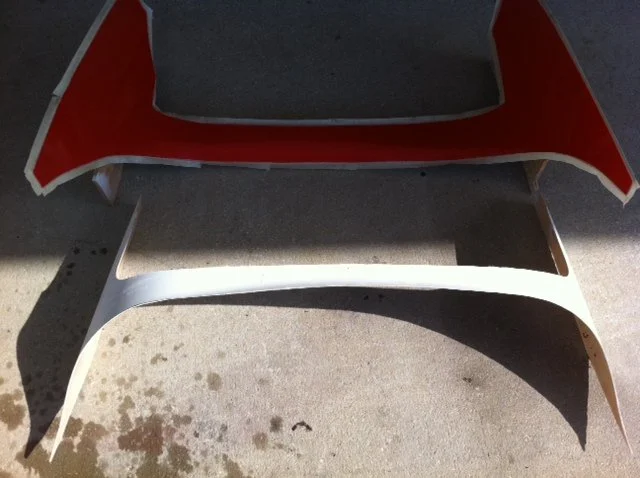

RV12 Shield made of fiberglass.

The first step is to obtain the outer most template from the RV Plans

This template is normally used for cutting the largest piece of fiberglass if you make the faring yourself.

Test fit the template on your airplane with the canopy fully closed and trim for a good fit

Transfer the template to the Viking Shield

Rough Trim the Viking Shield outside the template

Test fit the shield to the airplane

Trim as needed, for a good fit

Mark the template boundary onto the windshield with a dry erase marker

Lightly sand the area with 400 grit paper

Bond the faring to the window with Permatex "The Right Stuff" Part Number 765-2427

Apply the glue in a heavy bead, 1 inch away from the edges in order for it not to squeeze on the windshield

In addition to the above, you also have to locate the pivot holes, one suggestion is to use socket head screws in order to maintain a small hole rather than having to open up the hole for a socket to fit over a hex head bolt.

It is not very different from the Vans procedure other than it is a pre-made part instead of strips of fiberglass.
